EPS Sandwich Panel has excellence of light weight(1/20-1/30 of concrete), heat insulation, rapid construction speed(operate without humidity and needn’t repeated fitment). It is a new type protection structural material, congregates bearing, heat preservation and water resistance.
EPS Sandwich Panel has excellence of light weight(1/20-1/30 of concrete), heat insulation, rapid construction speed(operate without humidity and needn't repeated fitment). It is a new type protection structural material, congregates bearing, heat preservation and water resistance.
EPS Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density EPS foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, EPS sandwich panel is the most effective acoustic materials used on construction.
| Component | Top Plate | Core Material | Bottom Plate |
| 0.4-0.6mm (Normal Use) | 50mm,75mm,100m,150mm,200mm | 04-0.6mm(Normal Use) | |
| Thickness | (Normal Use) | ||
| Material | Color Steel Plate | Eps | Color Steel Plate |
| Type Mode | 980mm Roof Panel/950-1150mm Wall Panel | ||
| Length | Less Than 11.8m (For Transport Need) | ||
| Color | White, Red, Blue For Normal Use,Any Color | ||
| Side Steel Strip | Galvanized Plate 0.3mm-0.7mm Thick | ||
| Application | Various Roofs And Walls Referring To The Large Size Factory Buildings, Storages, Exhibition Halls, Gymnasiums Etc. |
||
| Advantages | Light In Weight | ||
| Heat-Insulation, Good Sound Insulation ,Fireproof | |||
| Good Durability, Waterproof,Fireproof,Recycled Using | |||
| Competitive Price | |||
| Easy-Installation | |||
1. First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2. Before the installation of sandwich panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3. Before installation sandwich panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.
4. Sandwich Panel links with ground.
Lateral links: fixed sandwich panel with the ground at the other end of the round hole with steel frame fixed, connection between the two plate mouth involution, if occurrence crack of the connectors available heat preservation to fill.
Vertical links: the gap between plates, using the dedicated button concave groove in the fixed sandwich panel.

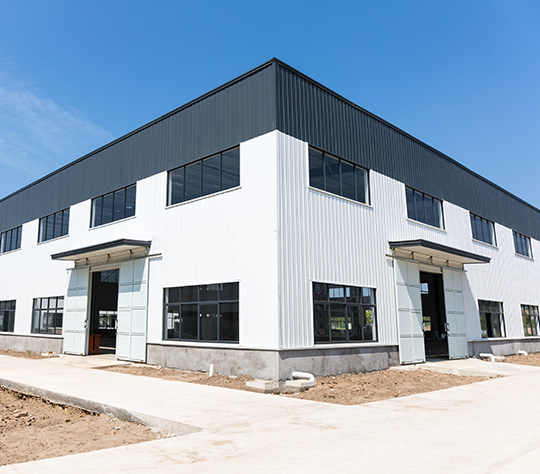

It widely used for steel structure workshop, steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of old structures, warehouse, steel structure house, workshop, work plant, airport, cold storage, mobile house. The almost typical applications include commercial buildings, sports halls, warehouses and power plants. The panels are also suitable for food industry construction and clean room applications.
